Introducing the 559 & 560 Miniature Cylindrical Fuse Holders (TR5/TE5 Series)
Optimized Protection for Compact Electronics

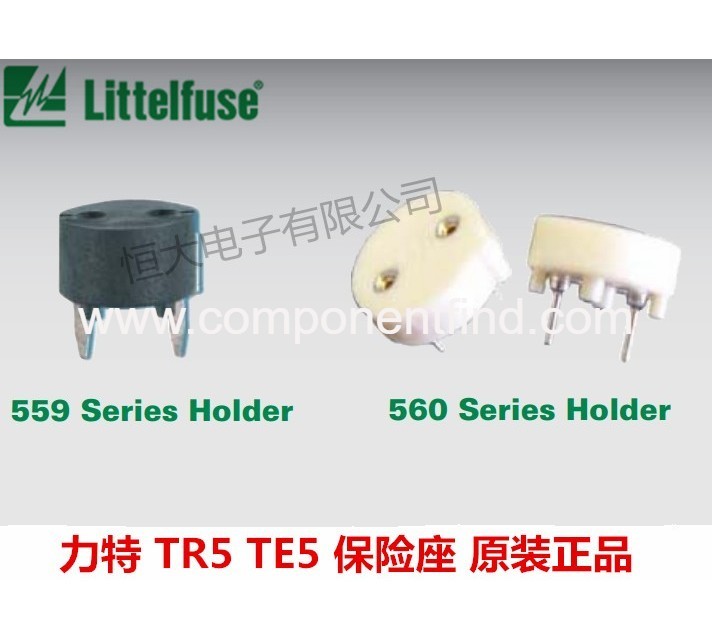

The 559 & 560 Miniature Cylindrical Fuse Holders (TR5/TE5 series) deliver precision circuit protection in space-constrained applications. Engineered for reliability, these holders accommodate standard miniature cylindrical fuses (e.g., 5×20mm), ensuring seamless integration into PCB designs where footprint efficiency is critical.
Key Advantages
✅ Ultra-Compact Design: With a minimalist profile, the 559/560 series fits densely populated boards, ideal for IoT devices, automotive modules, and industrial control systems.
✅ Robust Construction: Featuring high-temperature-resistant thermoplastic (UL94 V-0 rated), these holders withstand harsh environments while maintaining electrical integrity.
✅ Secure Retention: Spring-loaded contacts provide vibration-resistant fuse seating, eliminating intermittent connections in mobile or high-shock settings.
✅ Simplified Assembly: Pre-tinned, solder-friendly terminals enable rapid PCB mounting and compatibility with automated manufacturing processes.
Technical Specifications
- Compatibility: TR5/TE5 series for 5×20mm fuses (rated ≤10A/250V AC).
- Termination: Vertical PCB pins (lead-free, RoHS compliant).
- Operating Temp: -40°C to +105°C.
- Safety Certifications: UL/CSA recognized components.
Applications
- Power supplies & DC/DC converters
- EV charging systems & battery management
- Telecom infrastructure & embedded controllers
- Medical diagnostics equipment
Upgrade Your Circuit Protection Strategy
Engineers trust the 559/560 series for fail-safe performance where reliability cannot be compromised. Streamline your BOM and reduce field failures—order samples today to validate integration.
Order Codes:
- 559-TR5 (Standard Profile)
- 560-TE5 (Low-Height Variant)
Ensure uninterrupted operation—specify industry-proven fuse retention.
