Home > All Products > Automated Electronic Equipment > Breaker > Genuine Nader Shanghai Liangxin Electrical Circuit Breaker Air Switch NDB1-63C Series

Genuine Nader Shanghai Liangxin Electrical Circuit Breaker Air Switch NDB1-63C Series 1P 2P 3P 4P 1-63A

SKU:
0.0 (0)
0 Sold
$15.00 $20.00

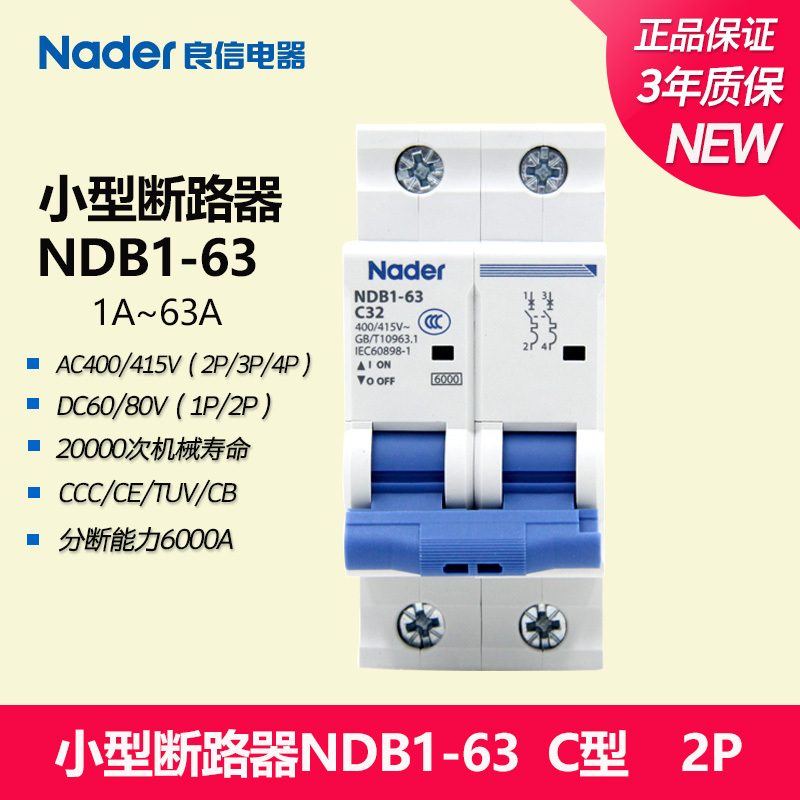

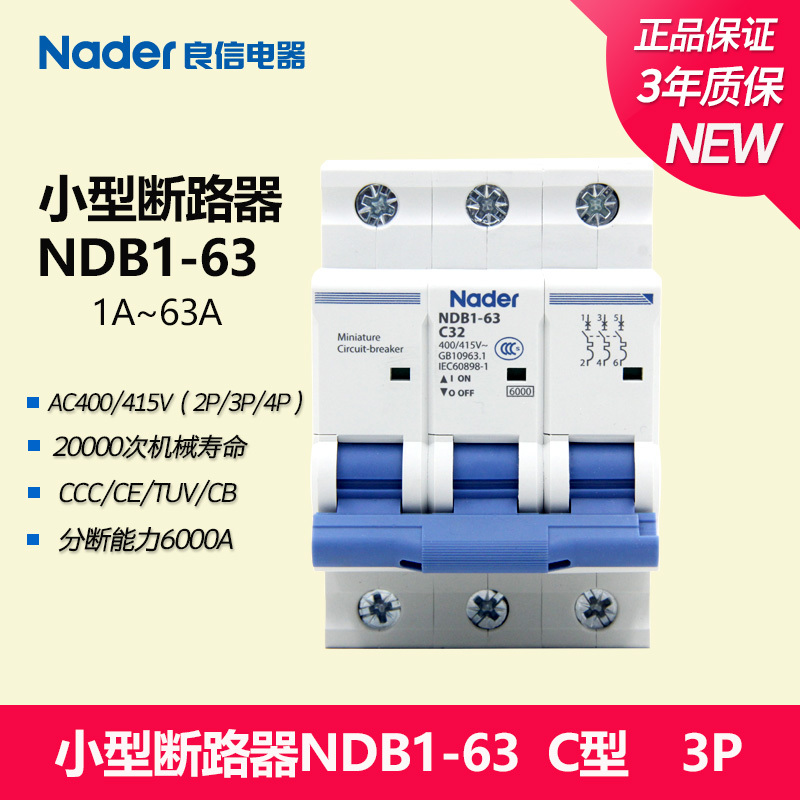

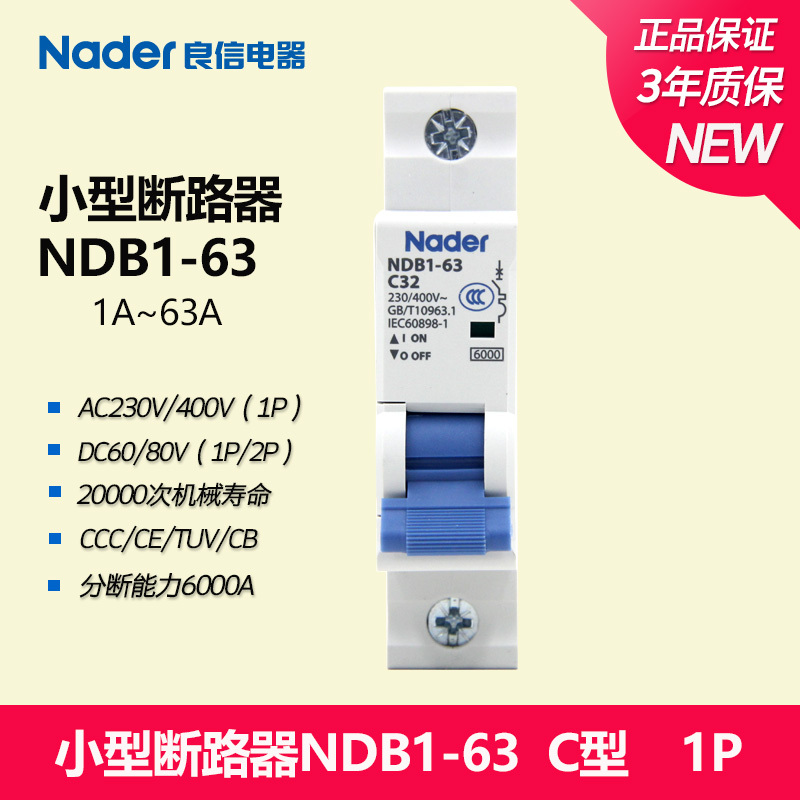

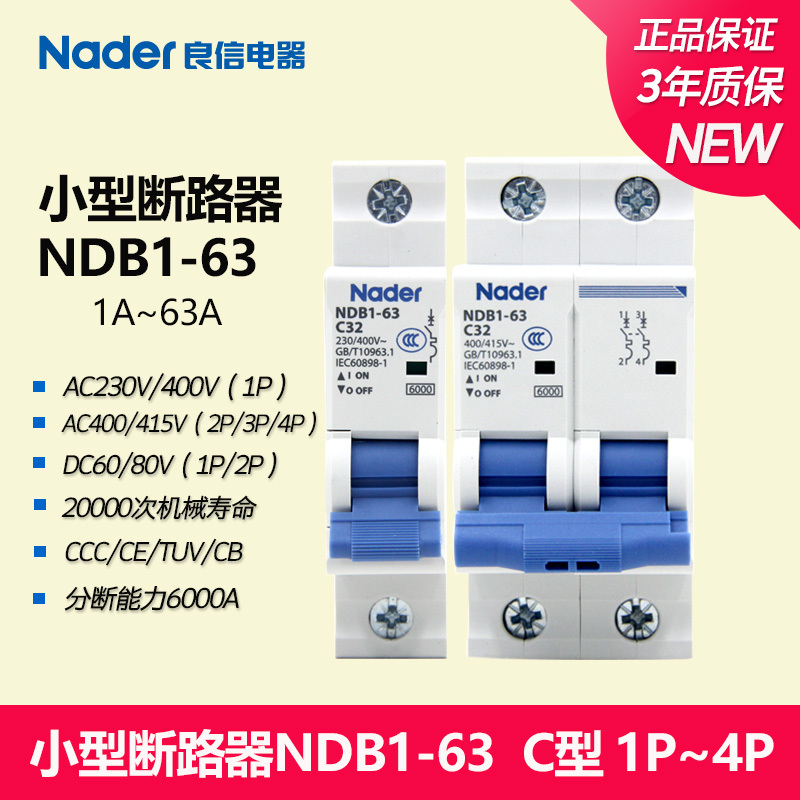

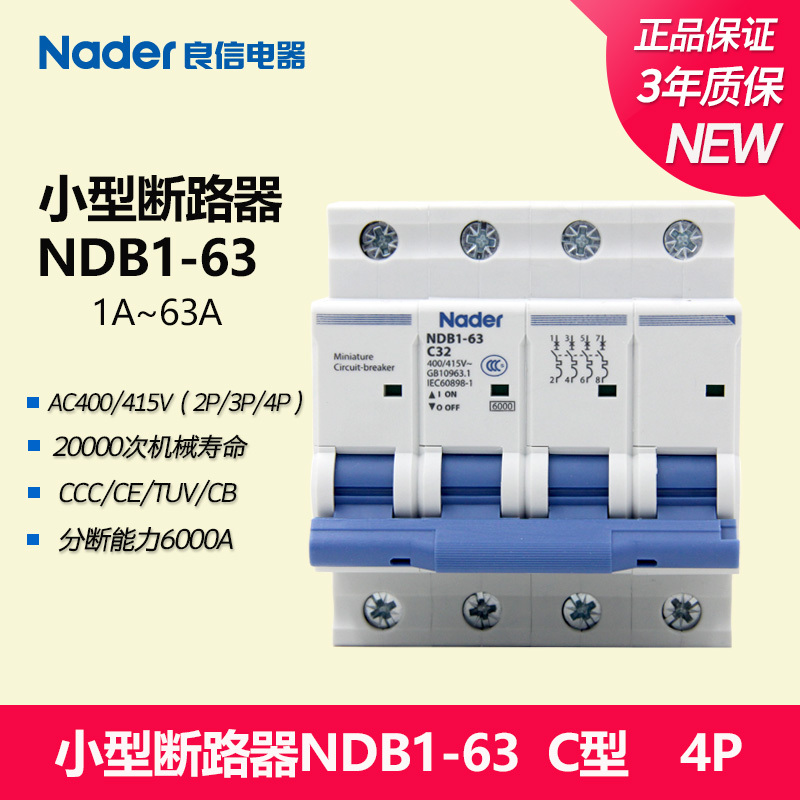

Genuine Nader Shanghai Liangxin Electrical Circuit Breaker Air Switch NDB1-63C Series
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Rated current:
    16A
    20A
    25A
    32A
    40A
    50A
    63A
    6A
    10A
  • Pole number:
    1P
    3P
    2P
    4P
Quantity:
  • Genuine Nader Shanghai Liangxin Electrical Circuit Breaker Air Switch NDB1-63C Series
  • Genuine Nader Shanghai Liangxin Electrical Circuit Breaker Air Switch NDB1-63C Series
  • Genuine Nader Shanghai Liangxin Electrical Circuit Breaker Air Switch NDB1-63C Series
  • Genuine Nader Shanghai Liangxin Electrical Circuit Breaker Air Switch NDB1-63C Series
  • Genuine Nader Shanghai Liangxin Electrical Circuit Breaker Air Switch NDB1-63C Series
  • Genuine Nader Shanghai Liangxin Electrical Circuit Breaker Air Switch NDB1-63C Series
  • Genuine Nader Shanghai Liangxin Electrical Circuit Breaker Air Switch NDB1-63C Series
  • Genuine Nader Shanghai Liangxin Electrical Circuit Breaker Air Switch NDB1-63C Series
  • Genuine Nader Shanghai Liangxin Electrical Circuit Breaker Air Switch NDB1-63C Series
  • Genuine Nader Shanghai Liangxin Electrical Circuit Breaker Air Switch NDB1-63C Series
1/1
  • Genuine Nader Shanghai Liangxin Electrical Circuit Breaker Air Switch NDB1-63C Series
  • Genuine Nader Shanghai Liangxin Electrical Circuit Breaker Air Switch NDB1-63C Series
  • Genuine Nader Shanghai Liangxin Electrical Circuit Breaker Air Switch NDB1-63C Series
  • Genuine Nader Shanghai Liangxin Electrical Circuit Breaker Air Switch NDB1-63C Series
  • Genuine Nader Shanghai Liangxin Electrical Circuit Breaker Air Switch NDB1-63C Series
  • Description

Genuine Nader Shanghai Liangxin NDB1-63C Series Circuit Breaker

Product Overview

The NDB1-63C series miniature circuit breaker, manufactured Designed for residential, commercial, and light industrial installations, this air switch delivers reliable overcurrent and short-circuit protection with precision engineering and rigorous quality control. Available in 1P, 2P, 3P, and 4P configurations, with current ratings ranging from 1A to 63A, this series adapts to diverse circuit requirements while maintaining consistent performance.

Key Technical Advantages

Precision Protection

Each unit incorporates a thermal-magnetic trip mechanism calibrated to IEC 608, while the magnetic element instantaneously interrupts high fault currents, ensuring both equipment safety and operational continuity.

Robust Construction

  • Housing Material: High-grade, flame-retardant PA66 (UL94 V-0 rated) withstands elevated temperatures without mechanical and electrical lifespan beyond 20,000 operations.
  • Terminal Design: IP20 finger-safe terminals with captive screws facilitate secure, tool-friendly wiring (suitable for 10–25 mm² conductors depending on rating).

Versatile Configurations

| Pole Type | Application | Typical Voltage | |-----------|-------------|-----------------| | 1P | Single-phase lighting, outlets | 230/400V AC | | 2P | Single-phase with neutral isolation | 230V AC | | 3P | Three-phase motors, pumps | 400V AC | | 4P | Three-phase with neutral (TN-S/TT systems) | 400V AC |

All models feature a 6kA breaking capacity (Icn), adequate for most residential and secondary distribution panels. The trip curve (C) is optimized for moderate inrush currents, making it ideal for inductive loads such as fluorescent lighting and small motors.

Installation & Compliance

  • Mounting: 35mm DIN rail (EN 60715) with positive snap-in mechanism and tool-free removal.

  • Indication: Clear ON/OFF status flag with padlockable procedures.

  • Certifications: CE, CCC, and CB scheme approvals; RoHS compliant.

    has over 30 years of experience in electrical distribution components. This series undergoes 100% factory testing for trip timing, dielectric strength, and contact resistance. Unlike generic alternatives, genuine Nader breakers provide:

  • Consistent trip accuracy across temperature ranges (-5°C to +40°C)

  • Low power loss due to optimized copper windings and magnetic cores

  • Interchangeable accessories (auxiliary contacts, shunt trips, alarm contacts) for smart panel integration

Ordering Guidance

Select the appropriate pole count and current rating based on your load calculation. For motor circuits, confirm the starting current does not exceed the magnetic trip threshold (5–10× In for C-curve). When in doubt, consult a licensed electrician to ensure coordination with upstream protective devices.


Trust genuine Nader protection for your critical circuits. Each unit is serialized and backed by a 5-year warranty against manufacturing defects.
