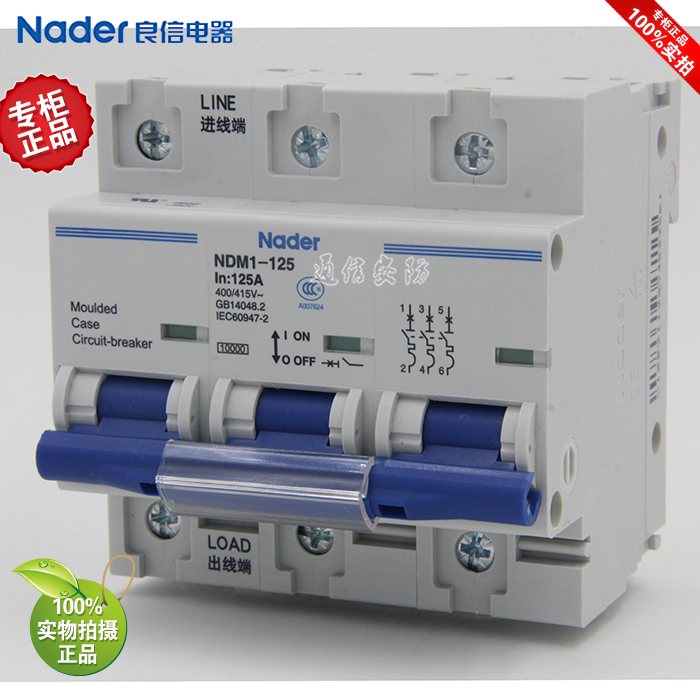

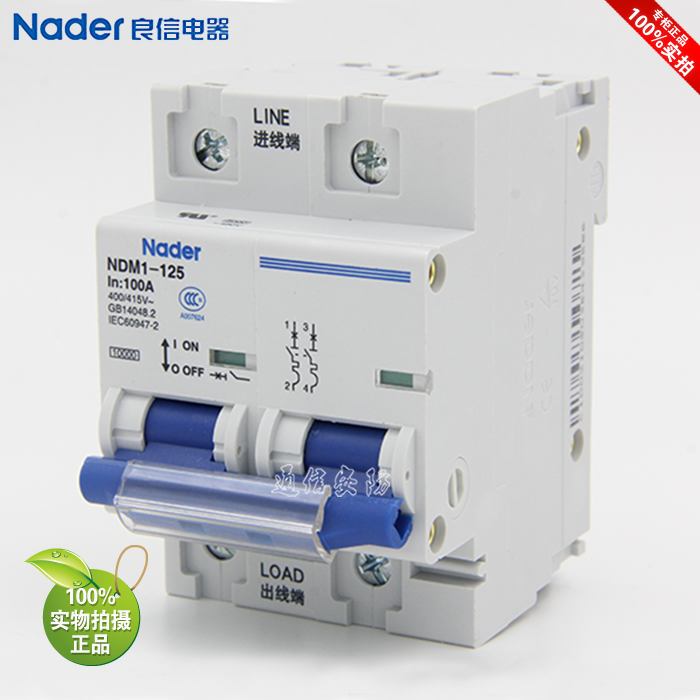

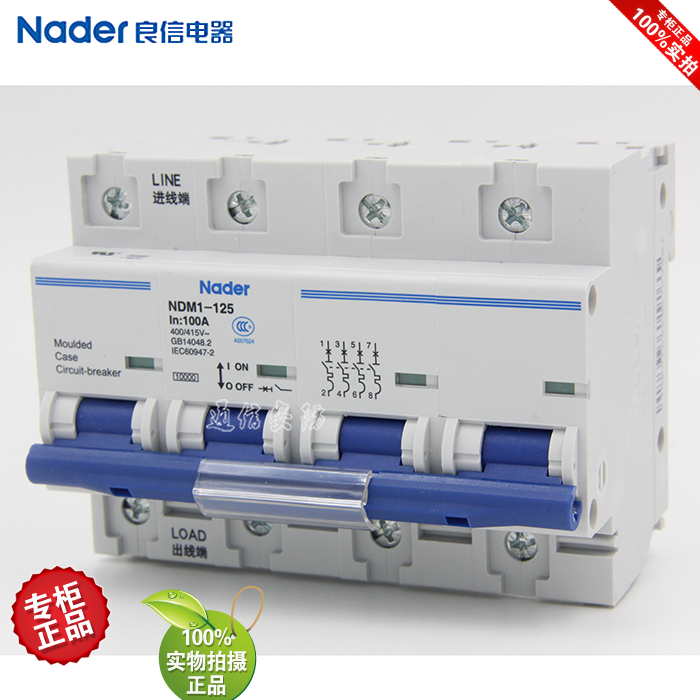

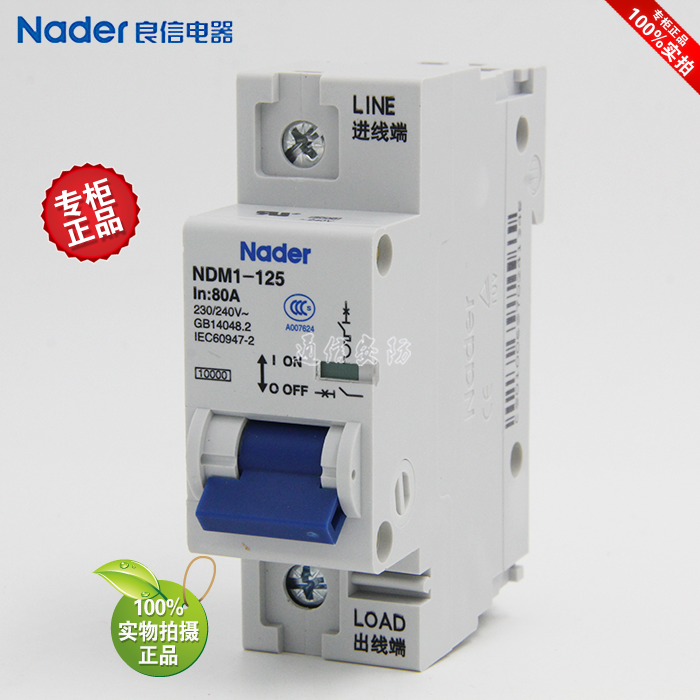

NDM1-125 Series Miniature Circuit Breaker (1P/2P/3P/4P, 80A–125A)
Product Overview
The NDM1-125 series is a premium-grade miniature circuit breaker (MCB) engineered by Shanghai Liangxin (Nader) , a trusted name in low-voltage electrical protection for over three decades. Designed for rigorous commercial and industrial applications, this air switch delivers dependable short-circuit and overload protection across single-phase and three-phase systems, with rated currents of 80A, 100A, and 125A.
Key Technical Highlights
- Genuine Nader Quality Assurance – Every unit is manufactured in Shanghai Liangxin’s ISO-certified facilities, undergoing 100% factory testing to meet IEC 60898-1 and GB 10963.1 standards. No counterfeits, no compromise.
- Versatile Pole Configurations – Choose from 1P, 2P, 3P, or 4P versions to match your distribution board layout, from simple lighting circuits to complex motor loads.
- High Breaking Capacity – Rated short-circuit capacity up to 10kA (per IEC 60898-1), ensuring safe disconnection under fault conditions, protecting downstream equipment and wiring.
- Thermal-Magnetic Trip Mechanism – Bimetal thermal trip for overload protection and magnetic coil for instantaneous short-circuit response. Precise, repeatable, and temperature-compensated.
- Robust Air Switch Construction – Flame-retardant PA66 housing, silver-alloy contacts, and arc-extinguishing grids extend electrical life to over 10,000 mechanical operations and 4,000 electrical operations.
- Clear Visual Indication – Trip-free mechanism with red/green contact position indicator ensures maintenance personnel can instantly verify open/closed status.
Application Scenarios
Ideal for industrial control panels, commercial distribution boxes, HVAC systems, and high-power lighting circuits where continuous loads exceed 63A. The 80A–125A range is particularly suited for main incoming switches, large motor branch circuits, and welding equipment protection.
Why Choose This NDM1-125?

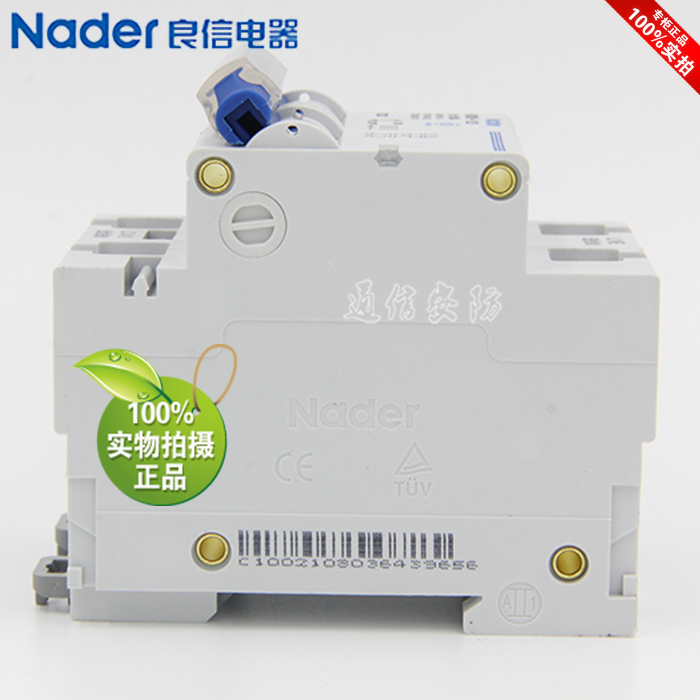

- Genuine Part Traceability – Each breaker carries a unique laser-etched serial number, verifiable via Nader’s official channel. Avoid non-certified substitutes that risk fire or equipment damage.
- Wide Operating Temperature (–25°C to +55°C) – Reliable performance in harsh environments, from outdoor substations to hot factory floors.
- Tool-Free DIN Rail Mounting – Spring-loaded clip fits standard 35mm DIN rails, reducing installation time by 30% compared to screw-type alternatives.
- Clear Terminal Markings – IP20 finger-safe terminals with captive screws and dual-connection capability (cable up to 35mm² or busbar fork).
Technical Specifications at a Glance
| Parameter | Value | |-----------|-------| | Rated Current (In) | 80A / 100A / 125A | | Poles | 1P, 2P, 3P, 4P | | Rated Voltage (Ue) | 230/400V AC (50/60Hz) | | Breaking Capacity (Icn) | 10kA | | Trip Curve | C (5–10 × In) or D (10–20 × In) – available on request | | Mechanical Life | 10,000 cycles | | Electrical Life | 4,000 cycles | | Connection Capacity | 2.5–35mm² (solid/stranded) | | Mounting | 35mm DIN rail | | Standards | IEC 60898-1, GB 10963.1 |
Ordering & Installation Notes
- For main isolator duty, select 4P for three-phase + neutral systems your inrush current (e.g., D-curve for transformer/motor loads).
- Torque terminals to 3.5 N·m for optimal contact pressure.
- Store in a dry, ventilated area before installation; protect from dust and moisture.
Choose genuine Nader NDM1-125 – where precision engineering meets uncompromising safety. Protect your assets with a breaker that performs when it matters most.
