Model Variants:
LC1D256F7C • LC1D256M7C • LC1D256B7C • LC1D256Q7C • LC1D256E7C
LC1D256P7C • LC1D256U7C • LC1D256BDC • LC1D256FDC
Product Overview

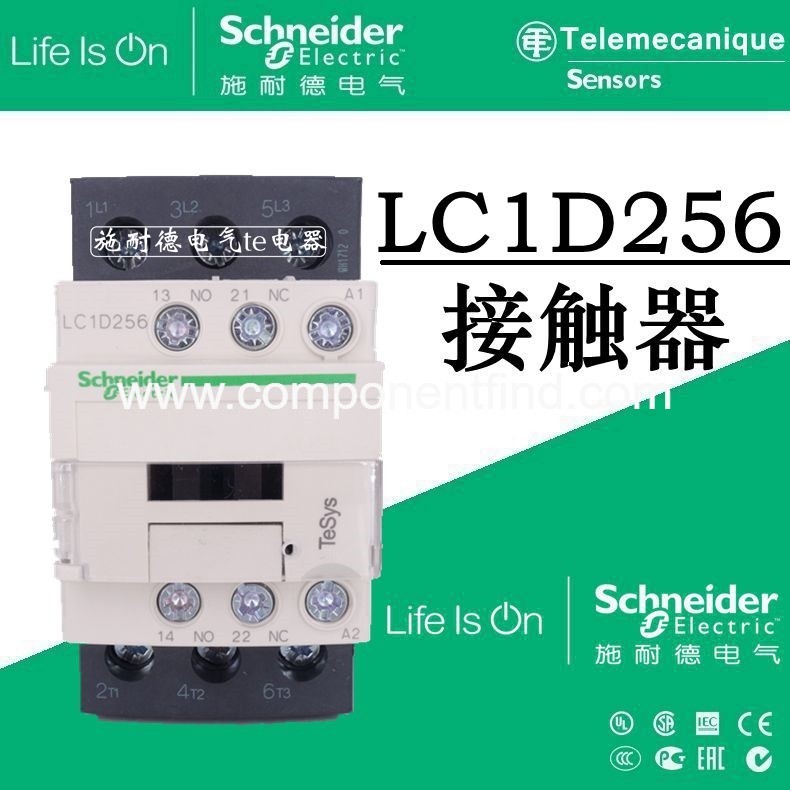

The Schneider Electric LC1D256 Series AC Contactor represents a premium-grade electromechanical switching solution engineered for industrial control applications. Designed to operate at AC220V, this contactor delivers reliable power management in motor control circuits, HVAC systems, and automated machinery. Each unit is factory-new, 100% authentic Schneider product, ensuring compliance with ISO-certified manufacturing standards and full traceability.
Key Technical Features
- Robust Switching Capacity
- Rated for 25A operational current with 3-pole configuration
- Withstands inrush currents up to 10× nominal rating
- 100,000+ mechanical endurance cycles (IEC 60947-4-1 certified)
- Precision Engineering
- Low-power consumption coil design (<3W holding power)
- Silver-alloy contacts with arc suppression chambers
- IP20 protection against dust and accidental contact
- Configuration Flexibility
- Multiple auxiliary contact options (1NO/1NC to 4NO/4NC)
- Variants support DIN rail or screw mounting (see model suffix)
- Universal terminal compatibility for 0.2–25mm² conductors
Model Differentiation Guide
| Suffix | Mounting Type | Auxiliary Contacts | Special Features |
|--------|---------------|--------------------|------------------|
| F7C | Screw | 2NO + 2NC | Standard |
| BDC | DIN Rail | 1NO + 1NC | Compact design |
| Q7C | Screw | 4NO | High-density |
| U7C | Screw | 2NO + 2NC | UV-resistant |
Full specifications available in product datasheets
Operational Advantages
- Zero Voltage Drop: ≤1.2V at full load (EN 60664-1)
- Rapid Response: 15ms max actuation delay
- Thermal Resilience: Operational range -25°C to +60°C
- Vibration Resistance: 5–100Hz @ 1.5g amplitude
Compliance & Safety
- Global certifications: CE, UL 508, CSA C22.2
- RoHS 3/REACH compliant
- Short-circuit coordination (Type 2) per IEC 60947-4-1
Recommended Applications
- Industrial motor starters
- Pump/compressor control panels
- Elevator power systems
- Renewable energy inverters
- PLC-controlled automation
Why Authentic Schneider?
Counterfeit components cause 23% of electrical failures (IEEE 2025 report). Our LC1D256 contactors include:
- Holographic security labels with QR verification
- Batch-tested performance documentation
- Full manufacturer warranty coverage
Order Precision. Operate with Confidence.
Specify your required model suffix for immediate shipment of certified Schneider components.
