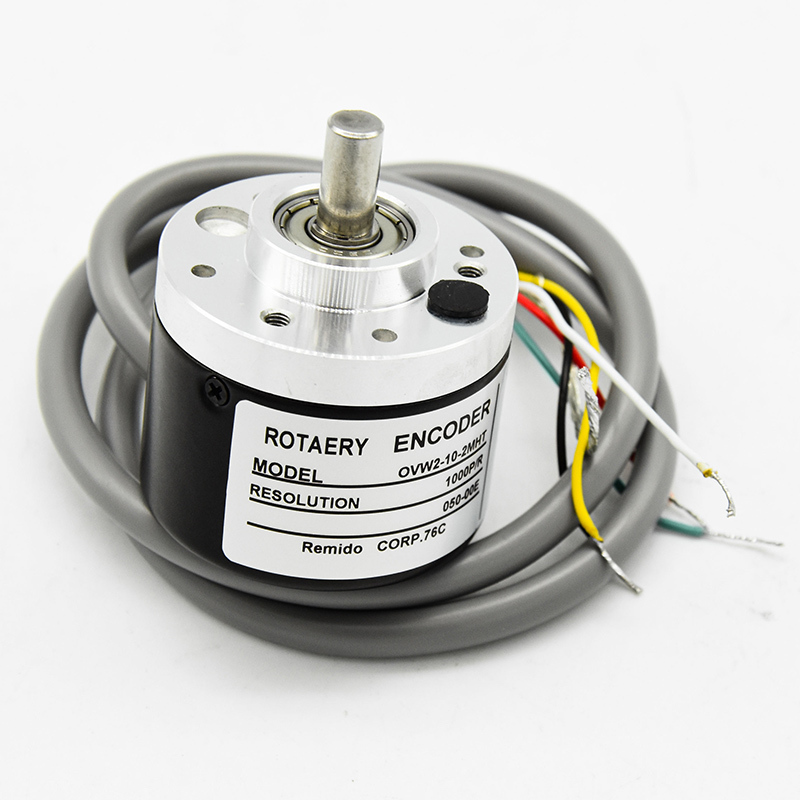

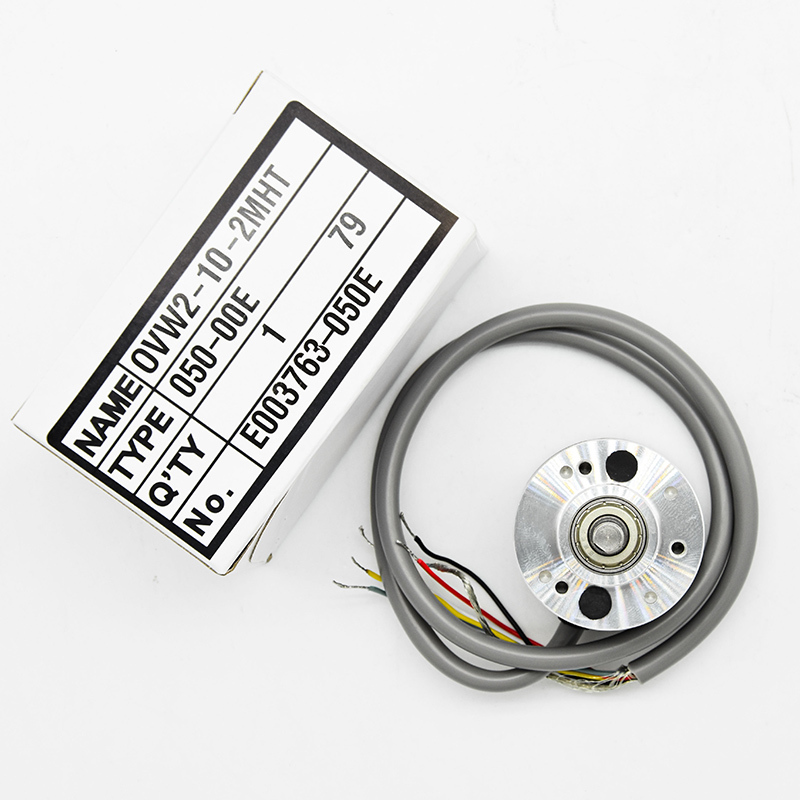

OVWTwo-0ThreeSix-TwoMDJapanNEMICONEncoder
JapanNEMICONEncoderHES/OVW2series

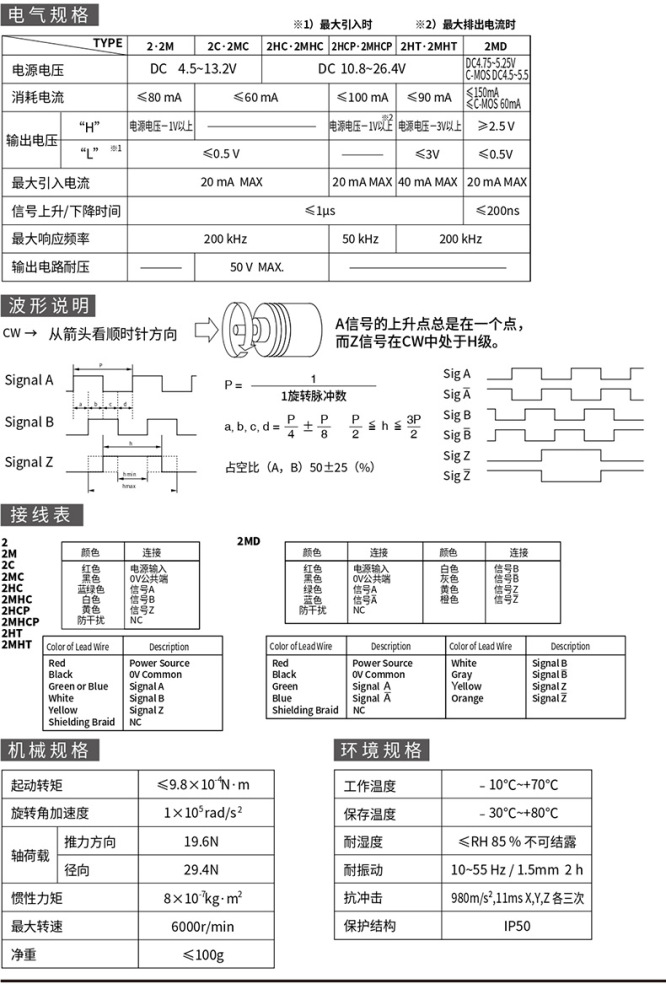

OVW2\HESSeries can choose multiple output modes,It is suitable for many applications.
1,OVW2Size:A kind ofThirty-eightXThirty;
2Axis diameter:A kind of6/DType incision;HES aperture has 5-6-Eight and other choices
Positioning Dimension PCDFour0 of 3-M3PCD30HES Shell on 2-2 and OVW2 Surface
3The number of pulses:20P/R-3600P/R
4Voltage:5-12Vor5-24V;
5Output signal:A-B-ZPhase;
6Output form: open collector outputCVoltage output, push-pull outputHT,PNPType I open collector outputHCP,Long-line Drive OutputD.
7Maximum response frequency:200KHZ
8Maximum speed:6000r/min
9Protection level:IP50
