Engineered for precision and durability in industrial control systems, the Schneider Electric CAD50 and CAD32 series represent the pinnacle of contactor-type intermediate relay technology. These relays provide a critical interface between control circuits and power circuits, ensuring reliable signal across a wide range of applications.
Key Features & Benefits
- High Switching Capacity: Rated for 20A, both the CAD50 and CAD32 models (including variants like B7C, E7C, M7C, Q7C, F7C) offer exceptional current handling capability, making them suitable for controlling demanding loads such as solenoids, contactor coils, small motors, and lighting systems.
- Contactor-Type Robustness: Built with the same robust construction principles as Schneider contactors, these relays deliver superior mechanical endurance and electrical life, ensuring long-term reliability even in harsh industrial environments.
- **Vers., B7C, E7C, M7C, Q7C, F7C) within the CAD50 series and the CAD32 model, offering flexibility in contact arrangements (NO, NC, NO+NC) and coil voltages to meet diverse circuit design requirements.
- Enhanced Safety & Isolation: Provides reliable electrical isolation between the control circuit and the load circuit, protecting sensitive control components from high voltages and currents.
- Compact & Efficient Design: Optimized footprint allows for efficient use of panel space, while maintaining high performance standards.
- Proven Schneider Quality: Manufactured to exacting standards, ensuring consistent performance, safety, and compliance with relevant international regulations.
Ideal Applications
Schneider CAD50 and CAD32 contactor-type intermediate relays are indispensable components in:
- Industrial automation systems (PLCs, control panels)
- Motor control centers (MCCs)
- Power distribution systems
- HVAC control systems
- Process control equipment
- Machinery and conveyor systems
- Lighting control panels
Why Choose Schneider CAD50/CAD32?
- Reliability: Engineered for millions of switching cycles under rated load conditions.
- Performance: Precise switching characteristics and high inrush current tolerance.
- Global Standards: Designed and tested to meet rigorous international safety and performance standards (e.g., IEC/EN, UL, CE).
- System Compatibility: Seamless integration within Schneider Electric ecosystems and other industrial control architectures.
Model Overview
- CAD50 Series: Includes variants such as B7C, E7C, M7C, Q7C, F7C, offering various contact configurations to suit specific application needs. All feature the 20A switching capacity.

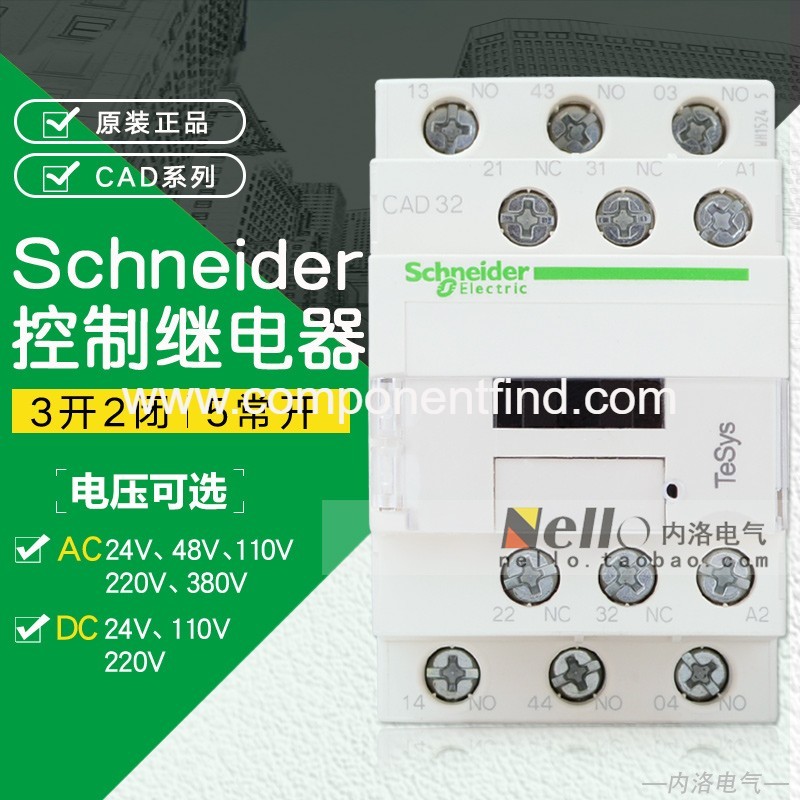

- CAD32: A reliable control relay option within the Schneider portfolio, also rated at 20A, providing robust performance for standard applications.
Upgrade your control systems with the proven performance and reliability of Schneider Electric CAD50 and CAD32 contactor-type intermediate relays. Ensure signal integrity, protect your equipment, and achieve optimal operational efficiency.
Specification Note: Always verify specific model details (coil voltage, contact arrangement) against technical datasheets for precise application requirements.
