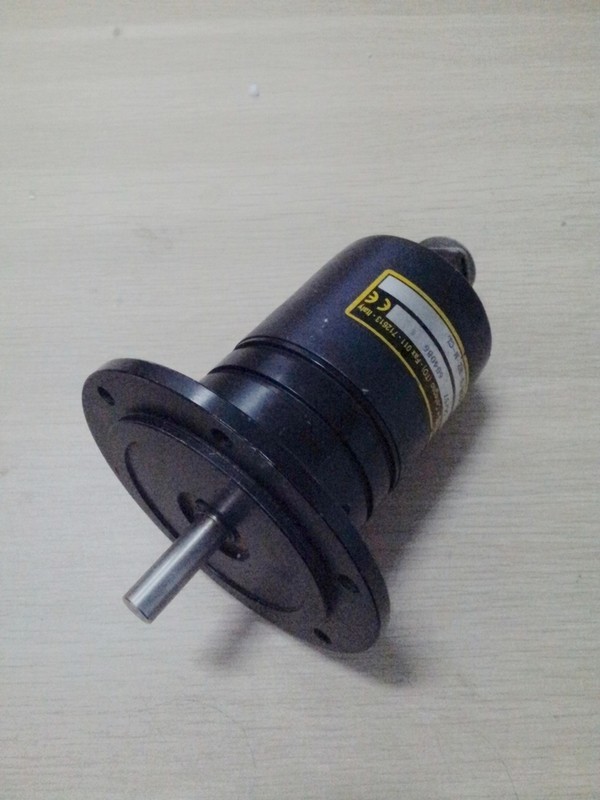

Name:Incremental rotary encoder, ABZ three-phase. The counting pulse signal of identifiable direction is generated by rotating grating disc and optocoupler.
parameter:Pulse can be selected at each turn. DC5-26V power supply, can do 12-24V power supply. Maximum mechanical speed 8000 rpm, response frequency: 0-300KHz, consumption current: <150MA.
size:Encoder body size:The fixed holes are 6 mm screw holes, three holes are 120 degrees distributed, and the distance to the center of the circle is 14 mm.
output:The output circuit includes NPN collector open circuit output type, voltage type, long-line drive type (RS422), complementary type, push-pull type and universal type.
purpose:It is used to measure the rotation speed, angle, acceleration and length of the object.It is suitable for intelligent control of various displacement measurement, automatic length fixing and automatic hydrating machine, steel bar length fixing and cutting controller, civil height measuring body scale, university students competition robot, etc.
