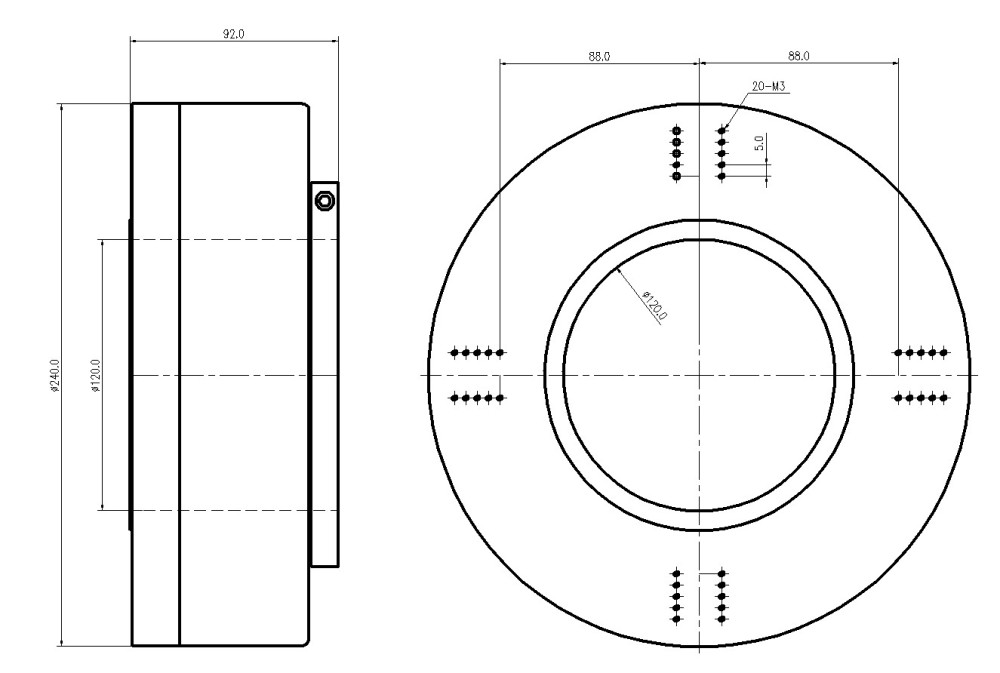

Super Large Aperture Encoder, Maximum Aperture 120, External Diameter 240

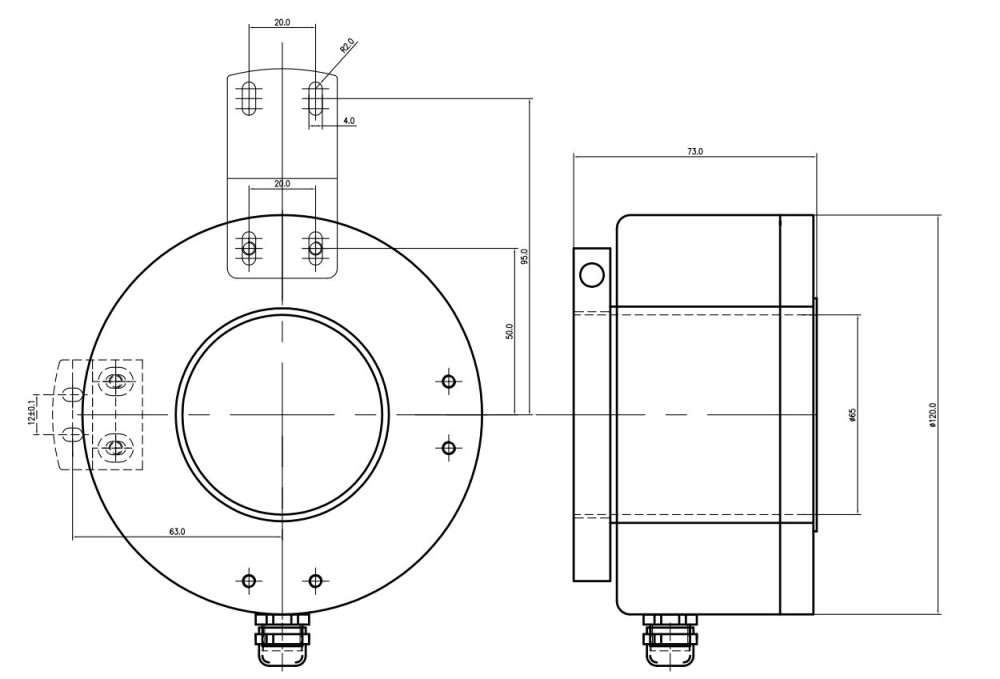

Standard 60 aperture - 65 aperture, external diameter 120
80 Aperture, Outer Diameter 150
outputABZ generates direction-recognizable counting pulses by rotating grating discs and optocouplers.
Axis aperture:30-35-40-45-50
Parameters: Pulse number 10 cpr-5000 CPR is optional,Working voltage DC5V-30V power supply, maximum mechanical speed 15000 rpm, response frequency: 0-300KHz, consumption current: <150MA.
Output:output circuitYesNPN(PNP)Open-circuit output type of collector"Voltage type, complementary type and long-line driving type（RS422)
Purpose:Servo motors, CNC machine tools, elevators, door machines, pipe benders, textile equipment
