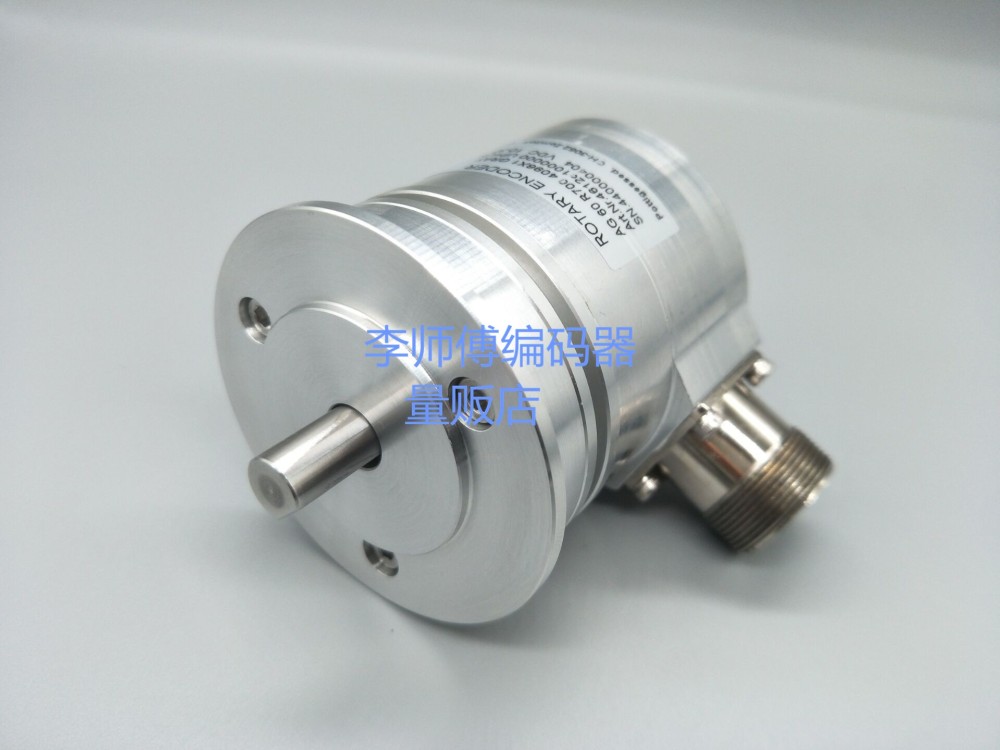

AG 60 R700 4096X1 GRAYSingle-loop Absolute Parallel Signal Output
* 12Bit 4096 line resolution
* Wide operating voltage range, 10~30VdcOr 5Vdc, polar protection
* Wide operating temperature range, -25-80 C; Storage temperature: - 40-120Temperature
* Parallel push-pull output (other options) Absolute Gray Code, Binary Code or Gray Residual Code, which can be directly connected to various devices
* Synchronized clamping flange or blind hole sleeve flange, international standard shape, other shapes are optional
* Absolute Encoder for Harsh Environment (Moisture, Dust, Impact and Vibration)
Characteristic parameters:
| Operating Voltage: 10-30 Vdc or 5 Vdc; Polarity Protection |
| Consumption current: 30mA (no load) |
| Output signal: parallel push-pull output (parallel output voltage can be set flexibly), other forms are optional. |
| Output Code: Gray Code (Pure Binary Code or Gray Residual Code Optional) |
| Resolution: 12 bit 4096 line |
| Accuracy: Repeatability (+2 bit) (actual accuracy is related to installation accuracy and axis concentricity) |
| Working temperature: - 40 - 80 C |
| Storage temperature: - 40 - 100 C |
| Protection Level: IP65 |
| Connecting cable: 1 m 16 core cable radial side out (other forms can be ordered) |
| Outward appearance features: metal sealed shell, sealed double bearing structure (installation size see attached drawing) |
|
|
