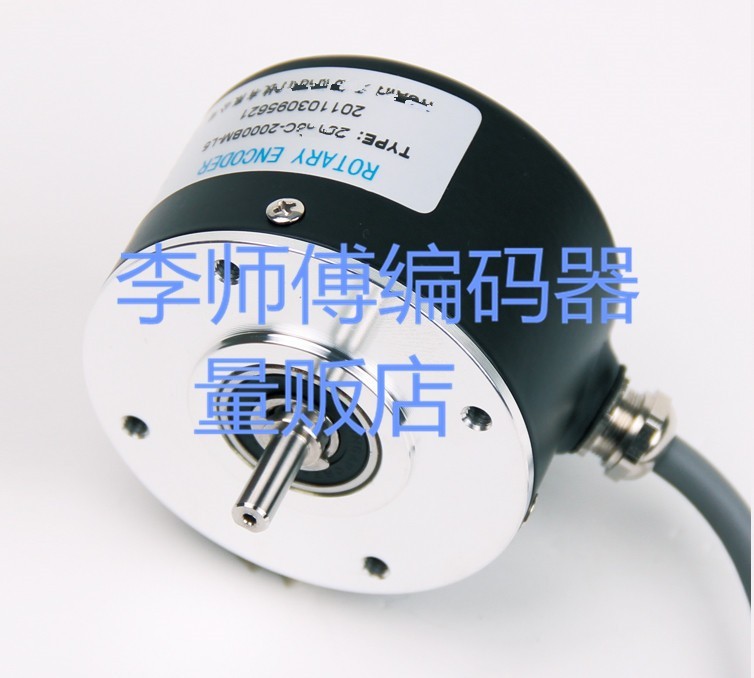

ABZ generates direction-recognizable counting pulses by rotating grating discs and optocouplers.
Parameters: Number of pulses1000 cpr-2000 cpr-2Five00 CPROptional,working voltageDC5V-30Vpower supply,Maximum mechanical speedTwelve000turn/Response frequency:0-300KHzConsumption of currentLess than 150MA。
Output:output circuitYesNPN(PNP)Open-circuit output type of collector\ Voltage type, complementary type and long-line driving type(RS422)General type
Purpose:Servo motors, CNC machine tools, elevators, door machines, pipe benders, textile equipment
ABZ generates direction-recognizable counting pulses by rotating grating discs and optocouplers.
Parameters: Number of pulses1000 cpr-2000 cpr-2500 CPROptional,working voltageDC5V-30Vpower supply,Maximum mechanical speed12000turn/Response frequency:0-300KHzConsumption of currentLess than 150MA。
Output:output circuitYesNPN（PNP)Open-circuit output type of collector\ Voltage type, complementary type and long-line driving type（RS422)General type
Purpose:Servo motors, CNC machine tools, elevators, door machines, pipe benders, textile equipment
