The counting pulse signal of identifiable direction is generated by rotating grating disc and optocoupler.

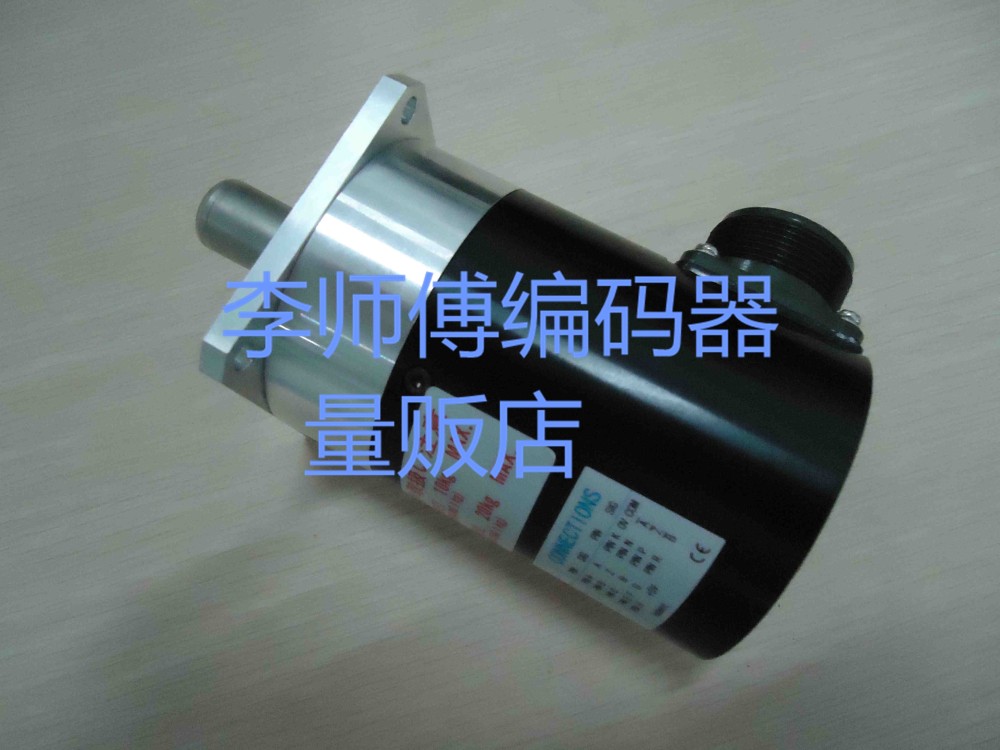

Aluminum enclosure, universal rotary encoder, ABZ three-phase. The counting pulse signal of identifiable direction is generated by rotating grating disc and optocoupler.
Parameters: The number of pulses is optional.DC5-26VPower supply, can do 12-24V power supply. Maximum mechanical speed 8000 rpm, response frequency: 0-300KHz, consumption current: <150MA.
Size:Encoder body size: 68 *1500mm; shaft 15 *28mm; fixed space: 4-M5 screw hole
Output:output circuitYesNPN(PNP)Open-circuit output type of collector"Voltage type, complementary type and long-line driving type（RS422)General type(Note: When the collector is not connected with pull-up resistance, there is no voltage output)
Purpose:Machine tool spindle,CNCProcessing centers, engraving and milling machines, engraving machines, gantry milling, etc.The counting pulse signal of identifiable direction is generated by rotating grating disc and optocoupler.
Aluminum enclosure, universal rotary encoder, ABZ three-phase. The counting pulse signal of identifiable direction is generated by rotating grating disc and optocoupler.
Parameters: The number of pulses is optional.DC5-26VPower supply, can do 12-24V power supply. Maximum mechanical speed 8000 rpm, response frequency: 0-300KHz, consumption current: <150MA.
Size:Encoder body size: 68 *1500mm; shaft 15 *28mm; fixed space: 4-M5 screw hole
Output:output circuitYesNPN(PNP)Open-circuit output type of collector"Voltage type, complementary type and long-line driving type（RS422)General type(Note: When the collector is not connected with pull-up resistance, there is no voltage output)
Purpose:Machine tool spindle,CNCProcessing centers, engraving and milling machines, engraving machines, gantry milling, etc.
