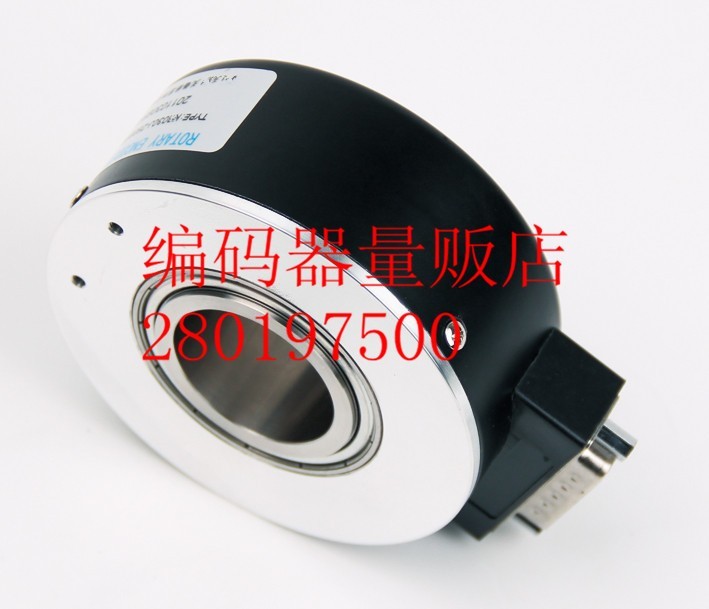

ITD 67 A 4 Y8 20/20 H/H AX/AX KR0.21/KRO.21 S 42 IP66 Thalheim EncoderComplete substitutes
outputABZ generates direction-recognizable counting pulses by rotating grating discs and optocouplers.
Integral structure, easy to install.Axis aperture:30-40-42-45-50,Axle clampingType structure, not easy to loosen
Parameters: Pulse number 10 cpr-5000 CPR is optional,Working voltage DC5V-30V power supply, maximum mechanical speed 15000 rpm, response frequency: 0-300KHz, consumption current: <150MA.
Output:The output circuit hasNPN(PNP) collector open-circuit output typevoltage type,complementary type and long-line drive type（RS422)
Purpose:Servo motors, CNC machine tools, elevators, door machines, pipe benders, textile equipment
