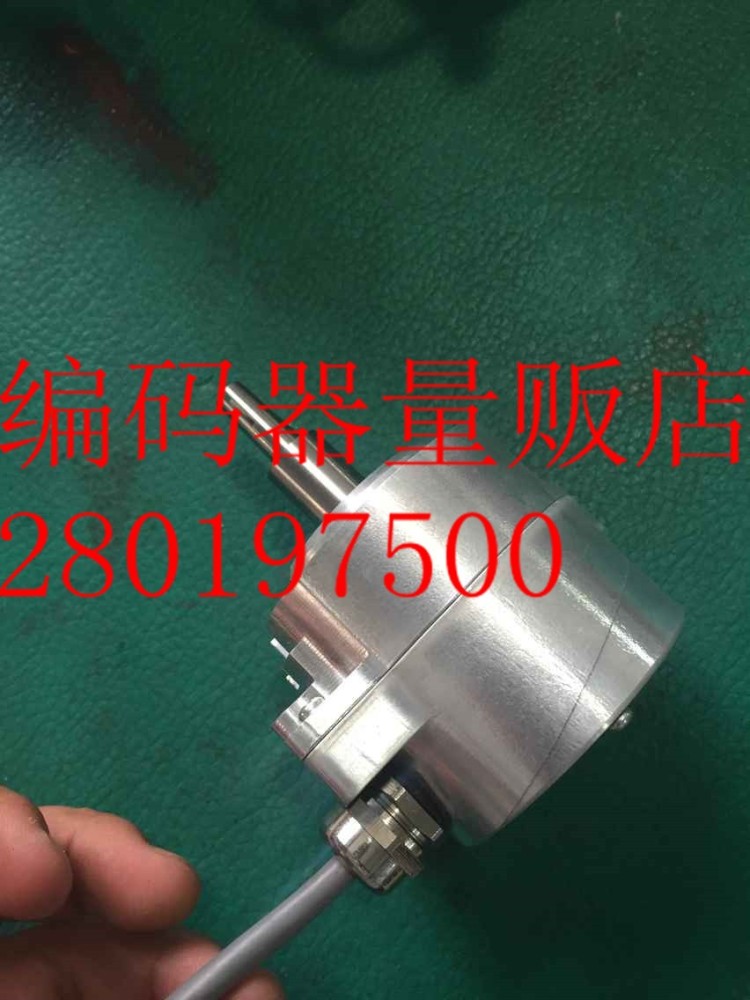

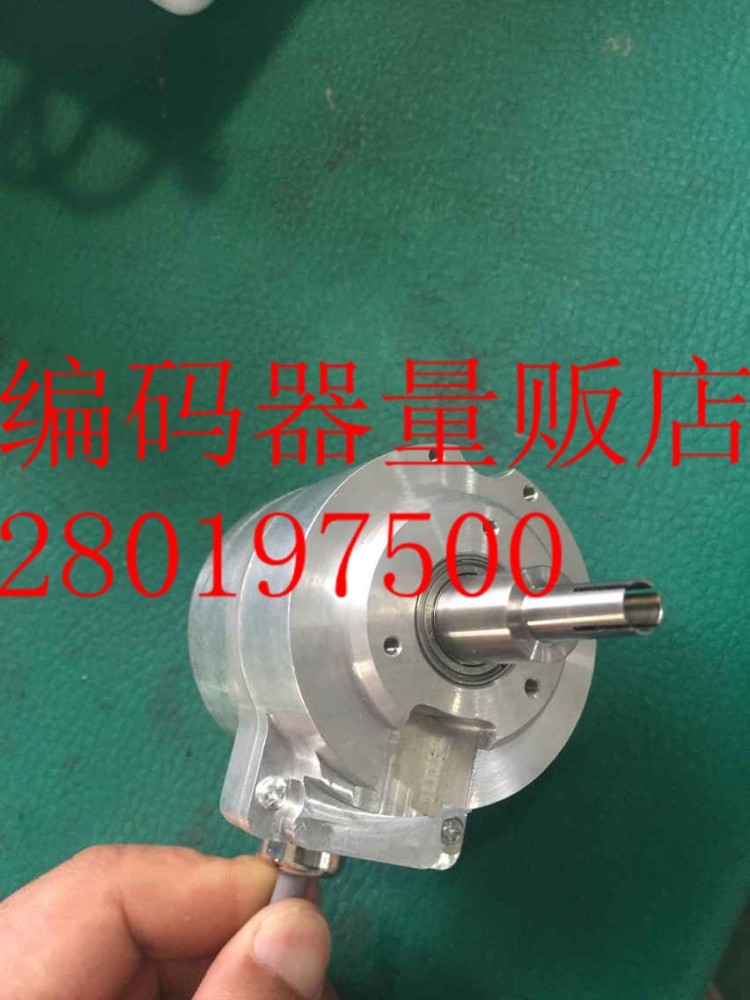

SEW OGS 72 DN One thousand and twenty-fourRBrand newGerman TechnologyEncoder Complete Substitute
Ser.Nr.2235993 IP 66 C493
UB = 9. 26VDC
1024 ~1Vpp
outputABZThe counting pulse signal of identifiable direction is generated by rotating grating disc and optocoupler.
axis/Aperture:05-06-07-08
Parameters: Pulse number 10 cpr-5000 CPR is optional,Working voltage DC5V-30V power supply, maximum mechanical speed 15000 rpm, response frequency: 0-300KHz, consumption current: <150MA.
Output:output circuitYesNPN(PNP)Open-circuit output type of collector"Voltage type, complementary type and long-line driving type（RS422)
Purpose:Servo motors, CNC machine tools, elevators, door machines, pipe benders, textile equipment
